Fabricated SWR fittings earn their cost when a drainage layout has a genuine geometry, access, or coordination problem that standard moulded parts cannot solve cleanly. By the end, you will be able to compare the installed cost, specify a custom fitting, inspect it before installation, and decide when a standard fitting is the safer choice.
Key takeaways
- Choose fabrication for low quantities, unusual geometry, or costly site clashes.
- Compare total installed cost, not fitting price alone.
- Provide a dimensioned drawing with angles, offsets, pipe sizes, and access constraints.
- Check material, joint fit, dimensions, and test results before installation.
When does a fabricated SWR fitting pay for itself in Pune?
So, are fabricated SWR fittings worth it in Pune? Yes, when low quantity, unusual geometry, difficult access, or high clash risk makes coordination expensive. Consider offsets around beams, congested shafts, unequal branch angles, plant-room or basement drainage, terrace rainwater lines, commercial buildings, campuses, industrial premises, retrofit connections, and one-off repairs.
The fabricated SWR fittings benefits in Pune come from coordination, not inherently better drainage. One long bend, tee, bend-pipe, coupler, or long elbow can replace several standard fittings and short pipe pieces, especially on 110 mm, 160 mm, or larger lines.
| Option | Cost and effort | Best fit |
|---|---|---|
| Fabricated | Add drawing preparation, site measurement, approval time, fabrication, inspection, transport from the Pune fabricator, installation labour, and rework risk | Low-volume, high-coordination geometry |
| Injection-moulded | Usually easier to source, dimensionally consistent, quick to install, and simpler to replace | Repeated layouts and standard connections |
Use this quick score before ordering:
- Add one point for custom geometry, difficult access, low quantity, and high clash risk; these favour fabrication.
- Add one point for repetition, urgency, easy sourcing, and a strict named certified system; these favour moulded fittings.
- Choose fabrication when the first score is higher and the avoided couplers, pipe pieces, relocation work, or rework exceed the custom cost.

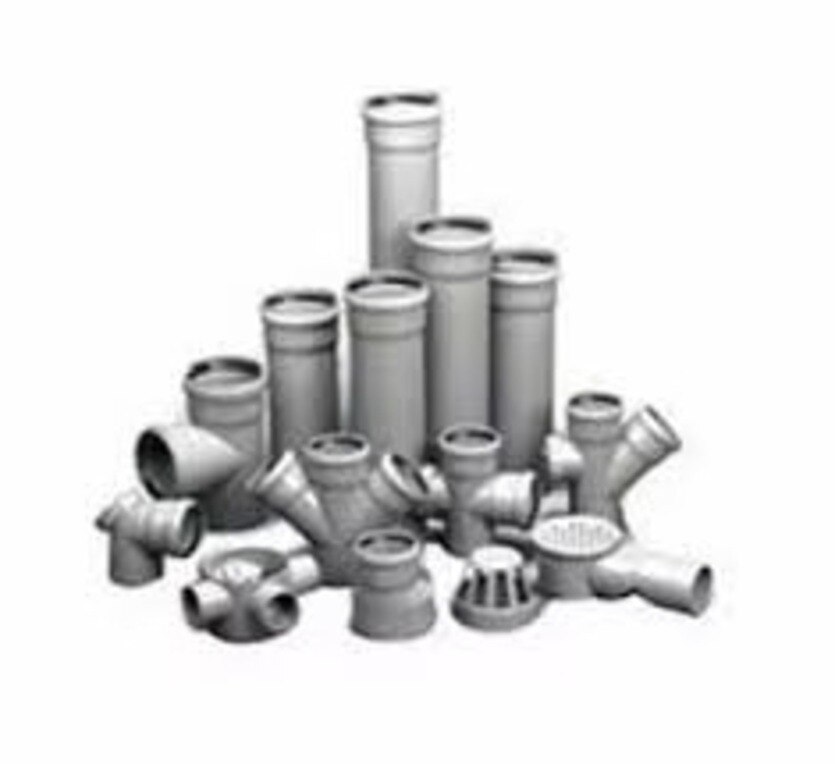

Choose standard injection-moulded elbows, tees, traps, reducers, and cleanouts for simple layouts, urgent replacements, high-volume installation, or named-system projects. A fabricated fitting cannot rescue inadequate slope, poor support, or inaccessible cleaning access.
Fabricated versus moulded SWR fittings: what is the real cost difference?
A moulded fitting usually costs less per unit and arrives faster because Pune stockists carry common sizes and angles. Its angle, socket, bore, and centre-to-end dimensions stay consistent, installation teams know the jointing process, and future replacements are easier to source. Fabrication earns its premium when geometry removes several components or prevents site changes.
| Option | Purchase price and lead time | Site and lifecycle effect |
|---|---|---|
| Moulded | Lower unit price; immediate or short-lead stock | Consistent dimensions, quicker jointing, simpler repairs and replacement |
| Fabricated | Higher unit price; drawing, approval and fabrication lead time | One-off geometry can reduce couplers, labour, congestion and rework |
| Moulded repeated layout | Best value at volume | Reliable for repeated elbows, tees and standard shafts |
| Fabricated 110 mm, 160 mm or larger offset | Worth considering when standard parts clash | Can preserve floor-to-floor clearance and avoid moving structural or MEP services |
Calculate installed cost, not one invoice line. Add shop drawing and approval time, survey and measurement, fabrication lead time, packing, transport, extra fitting labour, inspection, failed concealed-joint risk, and future replacement difficulty. One leakage repair behind a finished shaft can erase the apparent saving.
For SWR fittings for commercial projects, require these controls before release:
- Approve the shop drawing and inspect a sample or first piece.
- Identify every batch and sequence delivery by floor or shaft.
- Keep spare fittings for unusual geometries.
- Request compliance for the fitting and its joint: a fitting made from IS 13592 pipe is not automatically an IS 14735-compliant fitting. Source-pipe compliance alone is insufficient.
How do you specify and check a custom SWR fitting before fabrication?
A usable purchase brief for custom swr fittings in pune must define geometry, joints, and inspection—not merely say “custom 110 mm bend.”
1. State the selected pipe outside diameter, wall thickness, nominal size, effective bore, socket depth, insertion length, end type, bend angle, bend radius, centre-to-end dimensions, branch position, branch orientation, invert level, and available clearance. Identify every connection as a solvent-weld socket, rubber-ring joint, plain spigot, flange, or another approved detail.
Do not place a solvent-welded fabricated component into a ring-joint system without an approved transition.
2. Issue a drawing with an orientation arrow, flow direction, datum line, elevation, plan view, and reference dimensions. Mark the design slope, branch invert, rodding access, inspection openings, and adjacent structural or MEP obstructions. Custom geometry cannot correct inadequate slope, poor support, or an inaccessible cleanout.
3. Before approval, dry-fit the component against the actual pipe. Mark the required insertion line, check socket depth against that mark, confirm branch orientation and invert levels, and inspect the effective bore for internal lips, excess cement, misalignment, or abrupt mitred changes.
4. Confirm that the route preserves self-cleansing flow and contains no standing-water pocket. For repeated items, approve a dimensional template and inspect the first piece before releasing the batch; retain its measured bore, angles, socket depths, and centre-to-end dimensions as the acceptance record.
What fabrication and supplier checks protect a Pune commercial project?
A defensible fabrication sequence starts with square-cut, prepared pipe sections, alignment in a jig, and either compatible solvent cement or controlled thermoforming. The supplier then allows the specified curing time and checks finished dimensions against templates.
Inspect for square cuts, consistent socket depth, smooth internal transitions, full bonding, and correct alignment. Reject voids, cracks, cold joints, excessive cement, uneven heating, distortion, or a restricted bore.
| Evidence to request | Why it protects the project |
|---|---|
| Material grade and source pipe standard | Confirms the starting material |
| Fitting drawing, nominal size, wall thickness and joint design | Prevents incorrect geometry or incompatible joints |
| Fabrication method and inspection dimensions | Makes the process and acceptance limits clear |
| Batch or piece identification and inspection records | Supports handover and leak investigation |
| Delivery date, packing method and replacement support | Reduces damage, delay and future sourcing risk |
For custom SWR fittings in Pune, compare the approved drawing, first-piece inspection, traceability, lead time and joint details offered by Swapnil Enterprises against the project specification, not catalogue shape or price alone.
Coordinate floor penetrations, terrace outlets, basement drainage and congested shafts with civil, plumbing, structural and waterproofing teams. Require a tested firestop detail for every fire-rated penetration; the custom shape does not replace the firestop assembly.
This evidence-based approach is essential when selecting SWR fittings for commercial projects. On site, reject a fitting that cannot be identified, dry-fitted, dimensionally verified or matched to the approved joint system.
Related products
 | Fabricated SWR Fittings Fabricated SWR (Soil, Waste, Rainwater) fittings are plumbing components, typically made from unplasticized polyvinyl chloride (uPVC), used in... View product → |
 | Fabricated UPVC Fittings Fabricated UPVC fittings are custom-made, non-standard pipe connection components, often larger than 12 inches in diameter, constructed by joining... View product → |
How should you install, test, and maintain a fabricated SWR fitting?
Long-term value comes from workmanship, not a pressure-piping rating. Check alignment, invert levels, joint integrity, and support at every change of direction, then perform the project-specified water or air leakage test.
Specify the test method, test-section length, temporary plugs, and allowable leakage. A pressure rating for pressurised water piping does not prove gravity-drainage performance.
| Installation decision | Fabricated fitting | Moulded fitting |
|---|---|---|
| Best value | Low-volume, coordinated geometry | Repetition, urgency, easy replacement |
| Main risk | Misalignment, internal lips, concealed pockets | Less flexibility for unusual offsets |
| Acceptance focus | Drawing dimensions, bore, joints, leakage | Standard dimensions, joints, leakage |
Plan rodding points and inspection openings beside direction changes; retain cleaning-rod access and eliminate concealed low pockets. During Pune’s monsoon, coordinate terrace rainwater capacity, overflow routes, waterproofing details, and delivery protection.
For terraces, yards, and external shafts, shield PVC from UV and heat with a PVC-compatible coating or enclosure. Ordinary paint is not automatically a protective system and can interfere with jointing.
PVC expands about 5–8 × 10⁻⁵ per °C, so a 3 m exposed run can move 4.5–7.2 mm across 30°C. Do not rigidly trap connected directions.
That is the answer to are fabricated swr fittings worth it in pune: the fabricated swr fittings benefits in pune arise from coordinated geometry, not weaker inspection. Choose fabrication for low-volume, high-coordination work; choose moulded fittings for repeatability, urgency, easy replacement, and named-system requirements.
Frequently asked questions
When does a fabricated SWR fitting pay for itself in Pune?
It pays for itself when low quantity, unusual geometry, difficult access, retrofit work, or clash risk makes standard fittings costly to coordinate or install.
What is the real cost difference between fabricated and moulded SWR fittings?
Compare the complete cost: fitting price, minimum order quantity, design time, transport, site cutting, installation labour, rework, testing, and delay risk.
How do you specify and check a custom SWR fitting before fabrication?
Provide pipe outside diameters, wall thicknesses, branch angles, centre-to-centre dimensions, offsets, socket depths, joint type, material, access limits, and a dimensioned drawing. Check the approved drawing against the finished fitting.
What supplier checks protect a Pune commercial project?
Confirm material identification, fabrication capability, dimensional inspection, joint compatibility, packing, delivery timing, replacement terms, and inspection records before placing the order.
How should you install, test, and maintain a fabricated SWR fitting?
Support the connected pipework, align joints without forcing them, follow the specified solvent-cement or elastomeric-seal procedure, test the drainage line before concealment, and inspect for movement, leakage, and blockage during maintenance.
Related products
 | Fabricated PVC Fittings Fabricated PVC fittings are custom-shaped fittings, often for larger diameters, made by cutting, bonding, and thermoforming segments of existing PVC... View product → |
 | PVC FABRICATED TEE Our PVC Fabricated Tee is a high-quality, durable solution for various plumbing and construction needs. View product → |

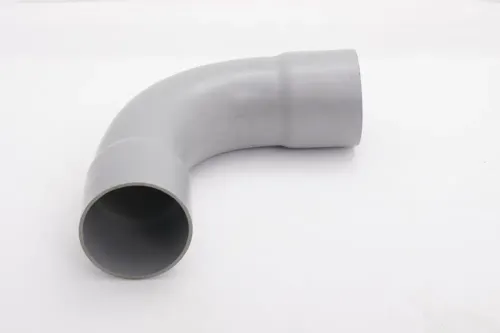

 | PVC FABRICATED LONG ELBOW A PVC fabricated long elbow is a non-standard, custom-molded pipe fitting, often for large diameters, created by heating and bending PVC pipes rather... View product → |
